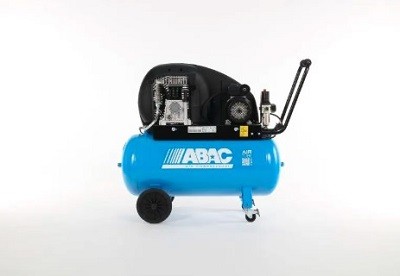

ABAC EXT A29B 90 CM3 UK (Single Phase)
Please sign in so that we can notify you about a reply
Free Mainland UK Shipping
If you need a portable air compressor for your workshop, the belt-driven ABAC PRO A29B 90 CM3 is great value for money. This is a belt drive compressor that you can use on commonly used air tools. It gives you a perfect combination of features. It is heavy duty and compact, with wheels and a comfortable handle so its easy to move around.
The ABAC PRO A29B is ideal for use in small to medium sized garages and workshops. It comes with a regulator and gauge so its simple to control accurately. The A29B system includes an aftercooler which cools the compressed air. This improves the durability of your equipment because moisture condenses out when the air temperature drops and this means the air will be drier when it runs through your air lines and air tools. The A29B also has quick couplings which makes it simple for you to switch between tools.
This system has a 90 litre tank to store compressed air and this lets you to run higher demand air tools.It has 3 HP motor and you can run it off a standard mains electric supply. It comes with a regulator and gauge for accurate control.
• Max Pressure (bar) : 10
• Vessel size (lt) : 90
• Air Displacement (l/min) : 320
• Motor (hp) : 3
| Specification | Value |
|---|---|
| Weight | 52000 g |
| Width | 502 cm |
| Height | 930 cm |
| Length | 1123 cm |
Technical details
| Specification | Value |
|---|---|
| Max Pressure (Bar) | 10 Bar |
| Max Pressure (Psi) | 145 PSI |
| Pump speed | 1300 Rpm |
| Vessel size (lt) | 90 Liter |
| Vessel size (gal) | 19.8 Gal |
| Configuration | Tank Mounted |
| Air Displacement (l/min) | 320 l/min |
| Air Displacement (cfm) | 10.9 Cfm |
| Lubrication | Oil Lubricated |
| Pump Element | PAT24A |
| Motor (hp) | 3 Hp |
| Motor (kw) | 2.2 kW |
| Supply voltage | 230 V |
| Frequency | 50 Hz |
| Number of phases | 1 |
