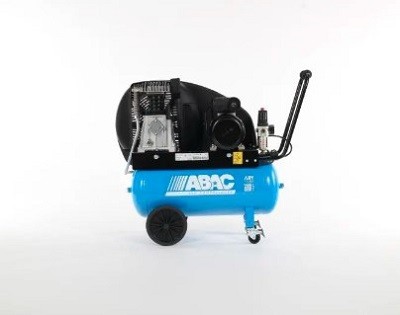

ABAC EXP A29B 50 CM3 UK (Single Phase)
Introducing the ABAC Expert EXP A29B 50 CM3 UK Belt Drive Compressor—a powerful, portable compressor that combines performance with convenience.
Built for efficiency and reliability, this compressor’s smooth belt-drive system ensures consistent, top-notch performance. Its compact 50 CM3 capacity makes it an ideal choice for various tasks, from stationary workshop setups to portable on-site applications, offering unmatched versatility
• Max Pressure (bar) : 10
• Vessel size (lt) : 50
• Air Displacement (l/min) : 320
• Motor (hp) : 3
| Specification | Value |
|---|---|
| Weight | 54000 g |
| Width | 422 cm |
| Height | 843 cm |
| Length | 1010 cm |
Technical details
| Specification | Value |
|---|---|
| Max Pressure (Bar) | 10 Bar |
| Max Pressure (Psi) | 145 PSI |
| Pump speed | 1300 Rpm |
| Vessel size (lt) | 50 Liter |
| Vessel size (gal) | 11 Gal |
| Configuration | Tank Mounted |
| Air Displacement (l/min) | 320 l/min |
| Air Displacement (cfm) | 10.9 Cfm |
| Lubrication | Oil Lubricated |
| Pump Element | PAT24A |
| Motor (hp) | 3 Hp |
| Motor (kw) | 2.2 kW |
| Supply voltage | 230 V |
| Frequency | 50 Hz |
| Number of phases | 1 |
