Land Rover Defender (2020+) Grille Kit - Triple-R 750
For an OE quality, auxiliary LED driving light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

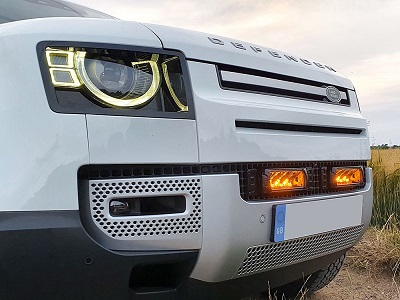

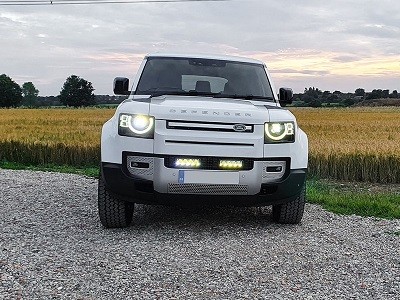

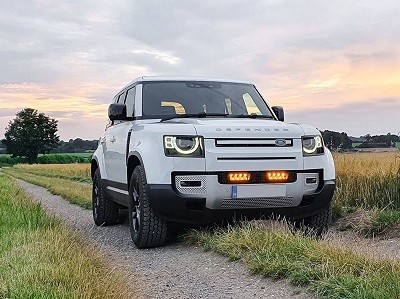

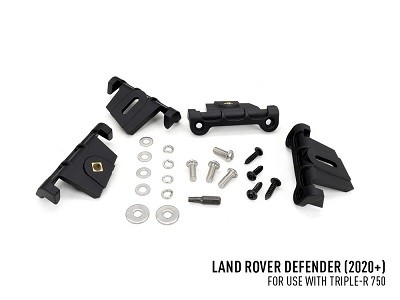

The Land Rover Defender kit, designed for MY20 vehicles onwards, includes a pair of Triple-R 750 (Standard Or Elite) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard lower grille on the vehicle, with added strength and security provided by the supplied self-tapping, anti-theft screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
The Land Rover Defender (2020+) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has automatic high beam assist, and/or LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.
Product Features
Bespoke vehicle integration kit for Lazer LED Spotlight installation

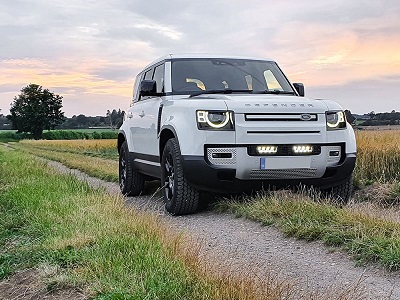

Custom fit for Land Rover Defender (2020+)

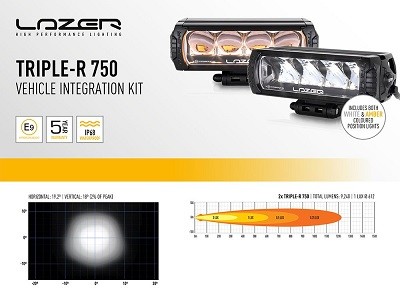

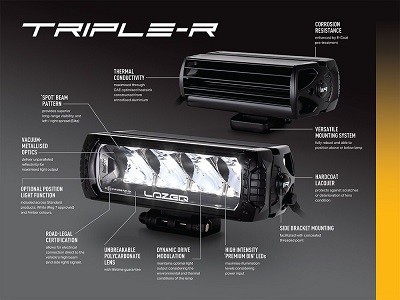

Designed for use with Triple-R 750 High Performance LED Spotlights

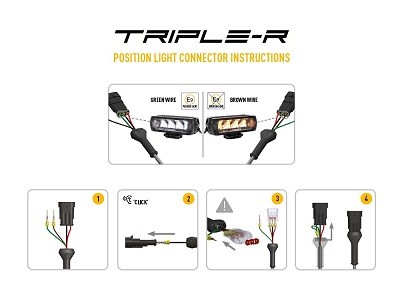

Added option for white or amber position/side light function (Standard model only)

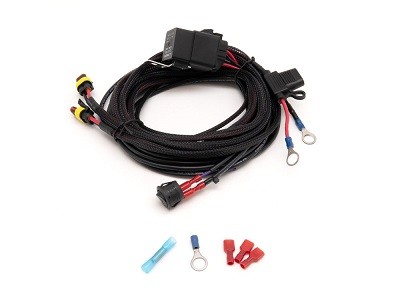

Kit also includes bespoke mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain
Technical Specifications

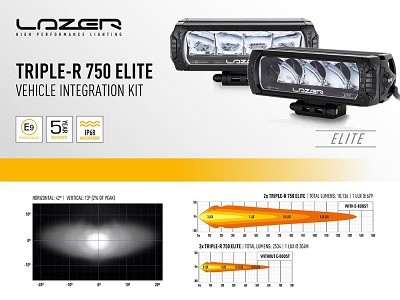

2x Triple-R 750 Elite (E-Boost Mode) | 2x Triple-R 750 | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2 kg | 2 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 10136 Lm | 9240 Lm |
| Total Driver 'FOV' Flux † | 6680 Lm | 5572 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 4 | 2 x 4 |
| Power Consumption | 104 Watts | 88 Watts |
| Current Draw (at 14.4V) | 7.2 Amps | 6.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | N/A (12.5 x2 - E-Mark Mode) | 35 x2 |
| Position Light (White only) | N/A | ECE R7 |

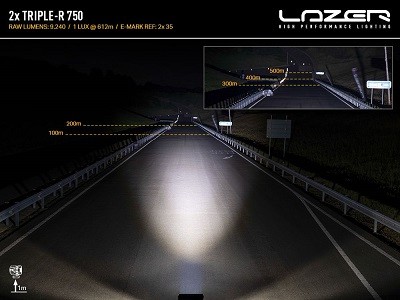

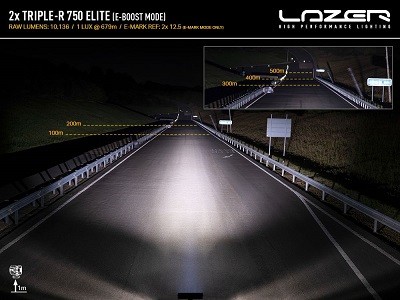

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 42° | 19° |
| 0.25 lx Line | 1358m | 1225m |
| 0.5 lx Line | 960m | 866m |
| 1 lx Line | 679m | 612m |
| 3 lx Line | 392m | 354m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
